GRPO: network and training

This page documents GRPO (group-relative policy optimization) when training.algorithm is grpo: the same discrete shared-trunk actor-critic as PPO (PPO actor-critic architecture), with a trajectory-level objective based on group-relative returns instead of PPO’s per-step GAE and clipped ratio.

Implementation: trackmania_rl.agents.policy_optimization.grpo (advantages and policy objective), trackmania_rl.multiprocess.learner_grpo (learner loop). trackmania_rl.agents.algorithms.registry maps "grpo" to trackmania_rl.agents.algorithms.ppo_wiring — identical network factory and PPOInferer rollout path as PPO.

YAML under grpo: (flat grpo_* on get_config()): GRPO configuration (grpo:) in Configuration Guide. Reference config: config_files/rl/config_grpo.yaml.

What GRPO is doing here (why each idea)

Reuse ``ppo_wiring`` and the same actor-critic. You keep one vision + float design (Variants A/B/C on PPO actor-critic architecture) and the same checkpoints / collector contract. Only the learner changes: no GAE, no PPO clip — so you can experiment with group-based credit without redefining nn.

Trajectory scalar :math:`R_i`. Each rollout is turned into per-step rewards (same dense + engineered shaping as PPO). Summing them gives one number per trajectory segment. Why: GRPO compares whole chunks of behavior (e.g. how far you got on the map in that run), not individual timesteps, so the signal is aligned with “this run was good/bad relative to other runs collected now.”

Wait for ``grpo_group_size`` valid batches. Short or malformed segments are dropped (same minimum length as the shared tensor builder). Why: advantages are defined only within a fixed group; partial groups would bias which trajectories enter training.

Group-relative advantages :math:`A_i`. Subtract the group mean (and optionally scale by group std) so \(\sum_i A_i = 0\). Why: you learn from which trajectory beat the others in this batch, not from absolute return scale (which drifts with reward schedules and map difficulty). Better-than-average runs get positive \(A_i\) and are reinforced; worse-than-average are discouraged.

Policy term :math:`-A_i sum_t logpi(a_{t}mid s_t)`. Classic REINFORCE on the full trajectory, weighted by \(A_i\). Why no PPO ratio: data are always on-policy for the current \(\theta\) inside each inner epoch; the code recomputes \(\log\pi\) with the live policy, so there is no stale behavior policy to correct with a ratio.

Recompute :math:`logpi` for ``grpo_update_epochs`` passes. Why: multiple Adam steps on the same \(K\) trajectories extract more from expensive env interaction, similar in spirit to PPO epochs — but still without a clip, so grpo_max_grad_norm and moderate learning rates matter.

Entropy term. Same role as in PPO: encourage stochasticity so the policy does not collapse to a single action mode too early.

Optional ``ref_policy`` + ``grpo_ref_kl_coef``. A frozen copy (periodically synced) evaluates \(\log\pi_{\mathrm{ref}}\). Why: penalize deviation from a reference snapshot or slowly moving anchor — useful if you want conservative updates or started from a strong prior. If the coefficient is 0, no extra forward passes on the reference.

Value head unused in the loss. Still computed at collection so queues and build_policy_rollout_tensors stay one code path with PPO/DPO. Why not strip it: less duplication and easier switching between ppo, dpo, and grpo; only the learner ignores \(V\) for GRPO’s objective.

Shared network + lock after each group update. Collectors must act with weights the learner just produced. Why: same real-time sync story as PPO — parallel envs, single source of truth for inference weights.

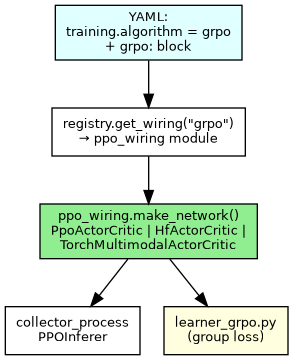

Algorithm placement (same code paths as PPO)

GRPO does not introduce a new nn topology: config → registry → ``ppo_wiring`` → ``make_network`` builds the same classes as PPO (Variant A/B/C on PPO actor-critic architecture). Only ``learner_grpo`` replaces ``learner_ppo``.

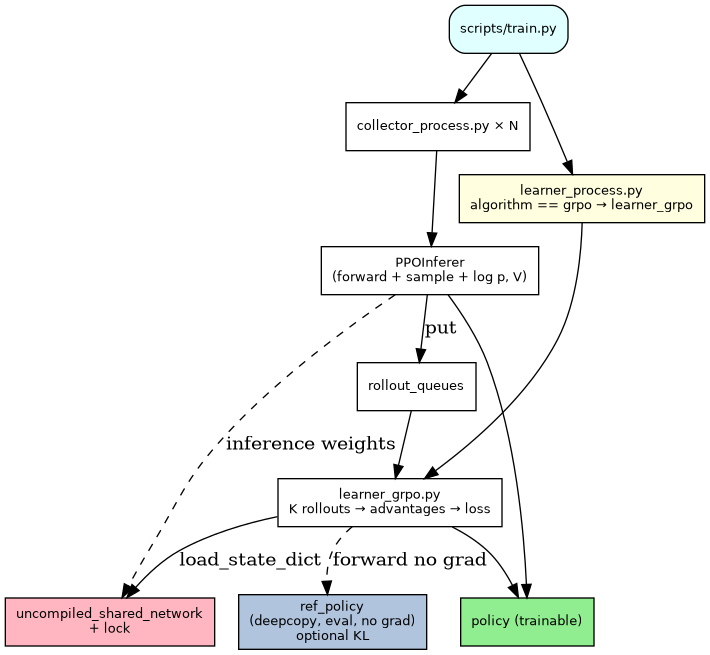

Training stack (processes)

Same multiprocess layout as PPO: collectors fill queues; one learner process consumes rollouts. The learner holds the trainable policy, a frozen ref_policy copy (optional KL term), and syncs weights into uncompiled_shared_network after each group update.

Why a separate ``ref_policy`` node in the diagram: KL regularization needs two forwards — trainable \(\pi_\theta\) and fixed \(\pi_{\mathrm{ref}}\) — without mixing gradients into the reference. Periodic load_state_dict from the live policy decides how “stale” the anchor is.

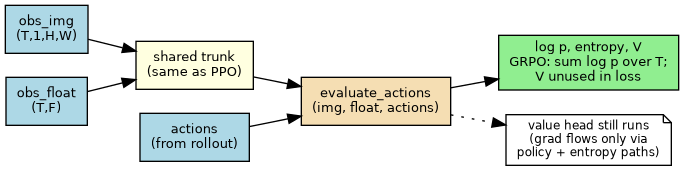

Policy network (identical to PPO)

All tensor routing (image + float → trunk → logits + \(V\)) is on PPO actor-critic architecture. The conceptual forward at collection and training is:

Collection: collectors still store ppo_values for parity with the tensor builder; GRPO ignores them in the objective. Entropy can be averaged per trajectory inside the learner when stacking the group.

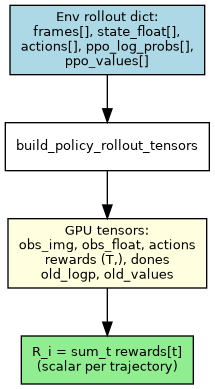

Rollout → GPU batch (one trajectory)

build_policy_rollout_tensors (policy_rollout_batch.py) aligns frames, state_float, actions, ppo_log_probs, and ppo_values, then calls ppo_rewards_and_dones_from_rollout for per-step rewards (dense + engineered, same as PPO). Invalid segments (too few steps) return None and are dropped.

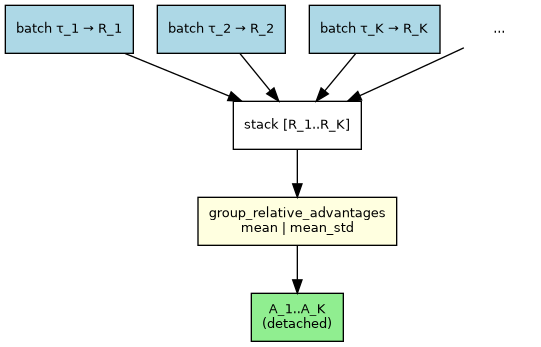

Forming a group and group-relative advantages

The learner buffers valid batches until it has exactly grpo_group_size trajectories \(\tau_1,\ldots,\tau_K\). Each has a scalar return \(R_i = \sum_t r_{i,t}\). Advantages are detached and zero-mean across the group:

• mean: \(A_i = R_i - \frac{1}{K}\sum_j R_j\).

• mean_std: center, then divide by group std (with stabilizer). Why ``mean_std``: when absolute return spread changes a lot across training, scaling keeps gradient scale more stable than centering alone.

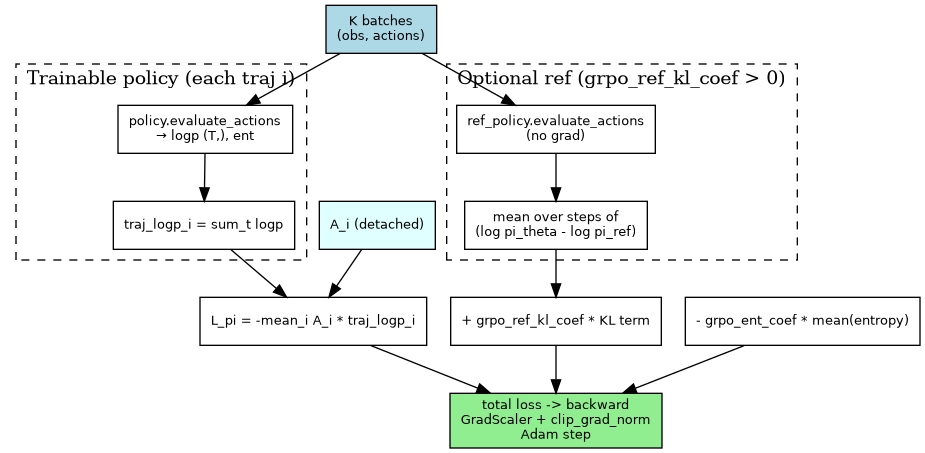

Policy loss (inner epochs)

For each grpo_update_epochs pass, the learner recomputes \(\log\pi_\theta(\tau_i)=\sum_t \log\pi_\theta(a_{i,t}\mid s_{i,t})\) with the current \(\theta\). The policy term is \(\mathcal{L}_\pi = -\frac{1}{K}\sum_i A_i \log\pi(\tau_i)\). Optional reference term uses ref_policy with torch.no_grad() on the reference branch; ref_policy is refreshed from the live policy every grpo_ref_sync_every_updates group updates.

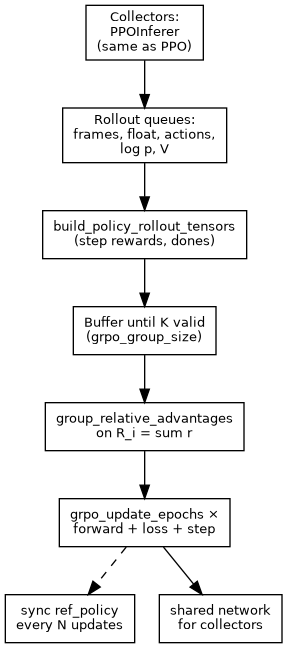

End-to-end training loop (summary)

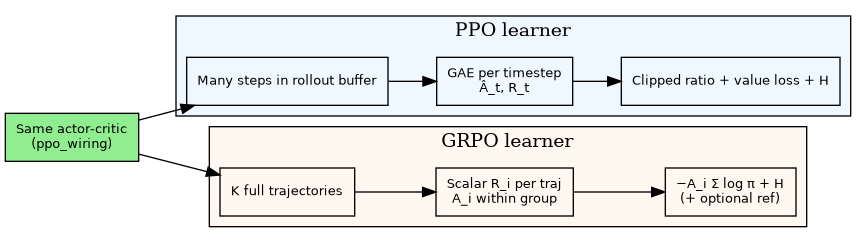

PPO vs GRPO (architecture vs credit assignment)

Architecture (CNN / HF / fusion, two inputs, two heads) is the same; only the learner’s use of outputs differs.

Aspect	PPO (PPO actor-critic architecture)	GRPO (this page)
Credit assignment	GAE on step rewards with \(\gamma\), \(\lambda\)	Scalar return \(R_i\) per trajectory; group-relative \(A_i\)
Policy objective	Clipped importance ratio vs behavior policy	REINFORCE-style \(-A_i \sum_t \log\pi(a_t|s_t)\) (no ratio clip)
Value head	Used (value loss + bootstrap for GAE)	Not used in the loss (still computed at collection)
Batch shape	ppo.rollout_steps_per_update then minibatches	Exactly grpo_group_size trajectories per update

Implementation references

• trackmania_rl/agents/policy_optimization/grpo.py — group centering and policy objective.

• trackmania_rl/multiprocess/learner_grpo.py — GRPO learner loop, reference policy, TensorBoard.

• trackmania_rl/multiprocess/policy_rollout_batch.py — build_policy_rollout_tensors, grpo_scheduled_float.

• trackmania_rl/agents/algorithms/ppo_wiring.py — network factory (shared with PPO/DPO).

• trackmania_rl/multiprocess/collector_process.py — policy-optimization collectors (PPO/DPO/GRPO).

• config_files/config_schema.py — GRPOConfig.

See also

• PPO actor-critic architecture — full actor-critic topology (Variants A/B/C), PPO process stack, GAE and clipped-loss diagrams.

• DPO (same ppo_wiring, preference loss): DPO configuration (dpo:) in Configuration Guide.

• NN topology catalog (supported stacks) — nn routing; GRPO uses the PPO rows.

• Configuration Guide — grpo: and rollout \(\gamma\).
