IQN architecture

IQN (implicit quantile networks) is the distributional off-policy baseline: quantile Q-values, replay, target network. Implementation centers on trackmania_rl/agents/iqn.py; which module graph is built depends on nn.fusion_mode and nn.vis (see below).

For optional BTR paper features, see BTR options (IQN + paper extras). BTR is not a separate training.algorithm; it toggles behavior on top of IQN.

Configuration lives under YAML nn (Neural network YAML (nn) — full reference in Configuration Guide). RL freeze flags: RL parameter freeze.

Which network is built? (routing)

build_iqn_network_uncompiled() (used by training and BC when algorithm: iqn) picks one topology:

1. Multimodal fusion — nn.fusion_mode is vision_transformer, post_concat, or unified. Builds the same TorchMultimodalActorCritic body as PPO with include_policy_heads=False, wrapped by IQNSharedBackboneNetwork (trackmania_rl/nn_build/iqn_multimodal.py). Submodule fusion exposes forward_fusion_hidden; IQN adds iqn_fc and dueling heads. Shared quantile + dueling math: trackmania_rl/nn_build/iqn_quantile_forward.py. When the multimodal vision branch is CNN (default nn.vis.cnn), the conv stem uses nn.vis.cnn via trackmania_rl/nn_build/vis_cnn_head.py — same flags as classic IQN_Network. BTR-style head options (LayerNorm, NoisyNet) on iqn_fc / A / V use the flat config via trackmania_rl/nn_build/iqn_btr_from_config.py.

2. HF vision, fusion off — nn.fusion_mode: none and nn.vis.transformer.use_hf_backbone: true. HfActorCritic without policy heads + IQNSharedBackboneNetwork (same file as above).

3. Classic CNN or float-only — nn.fusion_mode: none, nn.vis.cnn or nn.vis.no_image: true. Class IQN_Network — CNN image head (or no image), float MLP, concat, then τ-embedding and dueling heads.

Not supported: nn.vis.transformer with native ViT (use_hf_backbone: false) while fusion_mode: none — build_iqn_network_uncompiled raises; use fusion_mode multimodal or switch to HF ViT.

Hub warm-start: for multimodal fusion, nn.init_from_pretrained is applied automatically on the PPO path; IQN does not run the same hook yet (see Neural network YAML (nn) — full reference).

Vision and tensors by topology

Classic ``IQN_Network``

• Inputs: image (B, 1, H, W), floats (B, float_input_dim).

• Outputs: Q with IQN quantiles — single-action (B*K, n_actions) or multi-action (B*K, N, n_actions) for n_actions_per_block.

Shared backbone IQN (multimodal or HF vision)

• Inputs are the same; fusion.forward_fusion_hidden(img, float) produces a state vector (B, D) (width nn.decoder.dense_hidden_dimension after bridge, or HfActorCritic.pre_trunk_feature_dim on HF path).

• Then the same τ cosine embedding, iqn_fc, Hadamard product, and dueling readout as classic IQN (shared implementation).

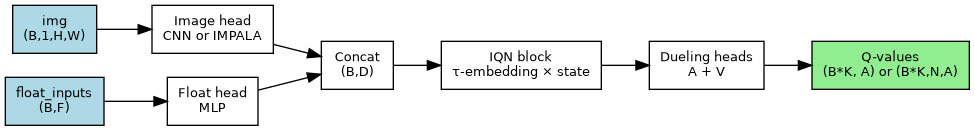

Core blocks (classic path)

Image branch

By default IQN uses a 4-layer CNN image head. The BTR option can replace this head with IMPALA-CNN, but the interface is unchanged: image branch outputs a flat embedding per sample.

Float branch

A two-layer MLP transforms normalized scalar features to float_hidden_dim.

Fusion

Image and float embeddings are concatenated into dense_input_dimension.

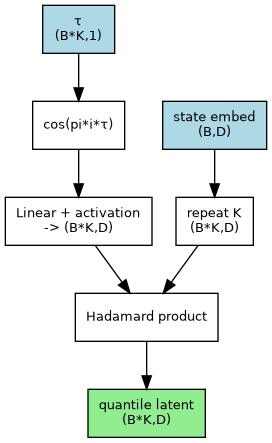

IQN quantile module

For each sample, IQN draws/supplies K quantiles τ and computes:

1. cosine embedding of τ (dimension iqn_embedding_dimension),

2. projection to state feature width,

3. element-wise multiplication with repeated fused state embedding.

This yields a quantile-conditioned latent representation (B*K, D).

Decoder (nn.decoder): MLP vs transformer slots

After fusing image + float into a flat vector (or after fusion hidden state), advantage and value each use a slot that is either mlp or transformer (mutually exclusive per slot):

• MLP: hidden width defaults to decoder.dense_hidden_dimension // 2 if mlp.hidden_dim is omitted; n_hidden_layers stacks of Linear (+ optional LayerNorm / NoisyLinear from btr).

• Transformer: IQNTransformerTrunk reshapes the flat vector into tokens (B, D/d_model, d_model) (so the input width must be divisible by d_model), runs torch.nn.TransformerEncoder, mean-pools to d_model, then a small Linear stack to actions or value.

``decoder.shared_input``: if either slot uses transformer, validation requires shared_input: post_tau. Classic IQN_Network.forward fuses image+float first, then applies quantile mixing (post-τ). pre_tau is schema-only for transformer slots today.

Dueling heads

Q(s,a,τ) = V(s,τ) + A(s,a,τ) - mean_a A(s,a,τ).

Multi-action mode factorizes by offset; output (B*K, N, n_actions).

Training flow (high level)

1. Collectors run an inference copy of the network.

2. Learner samples replay; target branch computes quantile targets.

3. Quantile Huber loss; target network soft/hard updates.

Key design notes

• Distributional: return quantiles, not only mean Q.

• Dueling: state value + action advantage.

• DDQN, NoisyNet, multi-action: see config and BTR options (IQN + paper extras).

Implementation references

• trackmania_rl/agents/iqn.py — IQN_Network, build_iqn_network_uncompiled, trainer, inferer.

• trackmania_rl/nn_build/iqn_multimodal.py — IQNSharedBackboneNetwork, fusion/HF factories.

• trackmania_rl/nn_build/iqn_quantile_forward.py — shared τ + dueling forward.

• trackmania_rl/nn_build/vis_cnn_head.py / iqn_btr_from_config.py — config → kwargs for shared CNN / BTR head wiring (see PPO actor-critic architecture for PPO side).

• trackmania_rl/multiprocess/collector_process.py, learner_process.py.

See also

• NN topology catalog (supported stacks) — full matrix of supported nn topologies.

• PPO actor-critic architecture — same multimodal / HF bodies with policy heads.

• GRPO: network and training — same bodies under ppo_wiring; GRPO-specific training.

• BTR options (IQN + paper extras) — IQN extras under btr:.

• IQN model experiments — experiments.

• Configuration Guide — full nn reference.
