BTR options (IQN + paper extras)

This page describes how BTR is implemented in this project.

The most important point: BTR is not a separate architecture here. It is IQN (same IQN_Network and trainer path) plus a set of optional enhancements configured in the btr section of the config.

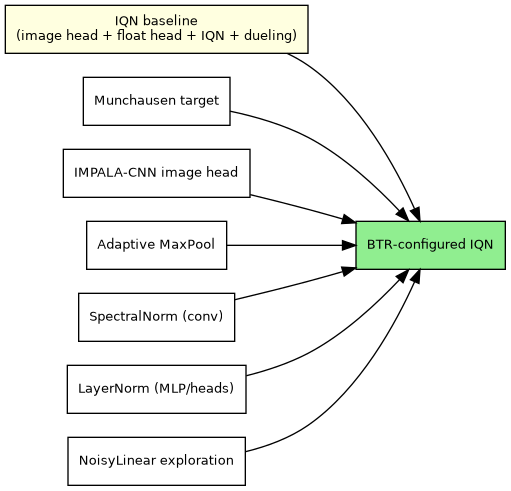

Baseline and composition

• Baseline: IQN architecture

• BTR in this repo: IQN + {Munchausen, IMPALA-CNN, AdaptiveMaxPool, SpectralNorm, LayerNorm, NoisyLinear}

Where each BTR option is applied

The table below maps each BTR feature to the implementation location and effect.

BTR feature	Where in code	What changes
Munchausen IQN	Trainer.train_on_batch in trackmania_rl/agents/iqn.py	Replaces hard-max/DDQN bootstrapped target with soft-policy value and log-policy reward bonus.
IMPALA-CNN	_build_img_head in trackmania_rl/agents/iqn.py	Swaps default 4-conv image encoder with IMPALA residual blocks.
Adaptive MaxPool	image head builder in trackmania_rl/agents/iqn.py	Produces fixed-size spatial output before flatten.
SpectralNorm	image head builder in trackmania_rl/agents/iqn.py	Wraps convolution layers with spectral normalization.
LayerNorm	float extractor and dueling heads in trackmania_rl/agents/iqn.py	Adds layer normalization in MLP/heads.
NoisyLinear	FactorizedNoisyLinear and action selection in trackmania_rl/agents/iqn.py	Uses trainable parameter noise; when enabled, rollout action logic does not use epsilon/Boltzmann branches.

Config resolution in code

• Vision CNN (IMPALA, adaptive pool, spectral norm): YAML canonical block is nn.vis.cnn; omitted keys can be filled from btr: at load (config_loader._merge_btr_cnn_into_vis). All call sites that build _build_img_head (classic IQN, PPO CNN, multimodal CNN branch, BC, pretrain) resolve kwargs through trackmania_rl/nn_build/vis_cnn_head.py.

• LayerNorm / NoisyNet / ``noisy_sigma0`` on IQN MLP heads (classic and shared-backbone IQN): read from the flat loaded config in trackmania_rl/nn_build/iqn_btr_from_config.py as iqn_btr_mlp_head_kw_from_config.

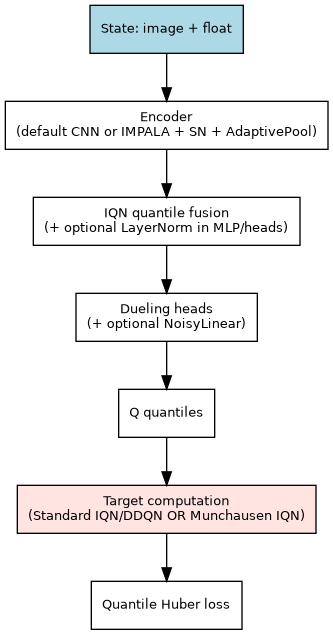

BTR data flow vs baseline IQN

At high level, BTR uses the same collector/learner/replay pipeline as IQN. Differences are in the model blocks and target computation:

Detailed behavior by component

1) Munchausen IQN target

With btr.use_munchausen: true, training uses the soft-policy target path:

• compute log π(a|s) from quantile-mean Q and temperature munchausen_entropy_tau;

• add reward bonus alpha * tau * clamp(log π(a_t|s_t), lo, 0);

• bootstrap with soft value V(s') = Σ_a π(a|s') [Q(s',a) - tau*log π(a|s')].

This path is implemented for both single-action and multi-action modes. If Munchausen is off, code falls back to standard DDQN/max target logic.

Why this is useful: it replaces brittle max(Q) style targets with a soft-policy target, which often reduces optimistic spikes and makes updates less jumpy. The bounded log-policy bonus also keeps learning signal informative when many actions have similar value.

2) IMPALA-CNN + Adaptive MaxPool + SpectralNorm

These three options modify only the image branch:

• nn.vis.cnn.use_impala_cnn selects residual IMPALA-style encoder.

• nn.vis.cnn.use_adaptive_maxpool changes spatial reduction to fixed size.

• nn.vis.cnn.use_spectral_norm wraps conv layers for spectral normalization.

The rest of IQN pipeline (float branch, quantile fusion, dueling heads, replay/training loop) remains unchanged.

Why this is useful: IMPALA usually gives a stronger visual encoder than a small plain conv stack. Adaptive max-pool makes spatial output size fixed and less sensitive to raw resolution details. Spectral norm limits sudden activation amplification, which often improves stability when targets are noisy.

3) LayerNorm in MLP and heads

With use_layer_norm, layer normalization is inserted in:

• float feature extractor;

• advantage/value head MLP blocks.

This is a stabilization feature and does not change tensor contracts.

Why this is useful: LayerNorm reduces hidden-scale drift across training and usually makes optimization smoother, especially when image and float branches have different feature scales.

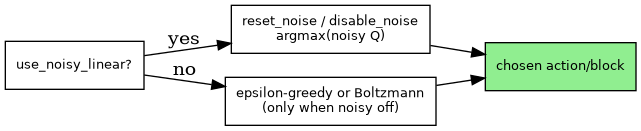

4) NoisyLinear and exploration semantics

When use_noisy_linear is enabled:

• linear layers in dueling heads become factorized noisy layers;

• rollout policy calls reset_noise() in exploration mode and disable_noise() in eval mode;

• epsilon/Boltzmann branches in action selection are bypassed.

So in this mode exploration is driven by parameter noise in Q-values. The epsilon schedules can still be present in config/logging, but they are not used to choose actions in the noisy branch.

Why this is useful: exploration becomes state-dependent (through noisy parameters) instead of uniform random action perturbations. In long runs this often preserves useful exploration better than a fixed epsilon schedule.

Configuration section

Vision CNN (canonical): nn.vis.cnn — use_impala_cnn, impala_model_size, use_adaptive_maxpool, adaptive_maxpool_size, use_spectral_norm. The loader can copy missing CNN keys from btr: into nn.vis.cnn for backward-compatible minimal YAML; IQN and PPO Variant A read the merged nn.vis.cnn. Multimodal fusion post_concat still uses its own fixed CNN in multimodal_torch_fusion.py.

BTR-only flags (under btr: in YAML, BTRConfig in code):

• use_munchausen, munchausen_alpha, munchausen_entropy_tau, munchausen_lo

• use_layer_norm

• use_noisy_linear, noisy_sigma0

BTRConfig still lists the CNN fields for schema/merge; prefer setting them on nn.vis.cnn in new configs to avoid duplication.

Practical recommendations

• Start from IQN defaults and enable BTR features incrementally if you need isolated ablations.

• For full BTR-style runs, enable all six features together.

• Keep in mind that some “paper defaults” are environment-specific; for TrackMania, schedule timing, gamma strategy, and batch size may need retuning.
