Experiment: PPO Smoke Run vs IQN Baseline (A01_as20_long_v2)

Experiment Overview

This note compares the PPO run ppo_smoke_run (on-policy actor-critic, save/ppo_smoke_run/config_snapshot.yaml) to the IQN baseline A01_as20_long_v2 (see Experiment: Global Schedule Speed (A01 Long v2 Series)).

TensorBoard layout: use a single logical run name for the baseline: A01_as20_long_v2. The analysis script merges suffix chunks automatically:

  • tensorboard/A01_as20_long_v2

  • tensorboard/A01_as20_long_v2_2

  • tensorboard/A01_as20_long_v2_3

PPO logs live in tensorboard/ppo_smoke_run.

What differs vs the IQN baseline: algorithm (ppo vs IQN), on-policy rollouts vs replay, network stack, and performance (e.g. PPO running_speed: 32 vs typical long IQN settings). This is not a controlled single-variable experiment.

Goal: Compare learning curves by cumulative training hours and by environment steps over the common window where both runs overlap.

Results

Important: Tables and plots use scripts/analyze_experiment_by_relative_time.py with --time-axis auto (cumulative training hours). ppo_smoke_run lasted ~6.61 h of cumulative training; A01_as20_long_v2 (merged TB) ~17.74 h. All by-time comparisons below use checkpoints 0.5, 1.0, …, 6.5 h (common window ends when the shorter run stops). BY STEP comparisons use checkpoints 1M … 21M (common window = min of max steps across runs).

Key findings:

  • alltime_min_ms_A01 (scalar best-so-far): at 6.5 h cumulative training, ppo_smoke_run 24.830 s vs A01_as20_long_v2 24.300 s (IQN ahead by ~0.53 s). At 21M steps: 24.830 s vs 24.450 s (IQN still ahead).

  • Per-race eval (Race/eval_race_time_trained_A01): at 6.5 h, best 24.930 s (PPO) vs 24.300 s (IQN); eval finish rate (IQN only, from per-race finished events) ~75% at 6.5 h vs 36% at 0.5 h. PPO’s legacy log has no eval_race_finished_* events, so PPO rate columns stay empty.

  • Per-race explo: at 6.5 h, best 24.850 s (PPO) vs 24.410 s (IQN).

  • Robust eval (Race/eval_race_time_robust_trained_A01): logged for IQN only; at 6.5 h best 24.300 s (mean 25.41 s over finished robust races in that window).

  • Training/loss (IQN): ~337.8 at 6.5 h (not comparable to PPO objective). RL/avg_Q_trained_A01 at 6.5 h: ~0.0017. Performance/learner_percentage_training at 6.5 h: ~64.8%.

  • Documented final IQN best for this series remains 24.150 s from saved state over the full long run (Experiment: Global Schedule Speed (A01 Long v2 Series)). ppo_smoke_run accumulated_stats.joblib best 24.830 s (21,627,235 frames).

  • Legacy PPO loss logging: Training/ppo_loss in the smoke TensorBoard used update index as step, so BY STEP loss and loss-vs-hours alignment are not trustworthy until a re-run with the fixed learner (frame-aligned global_step). A misleading dual-run ppo_loss JPG is not committed.

Run Analysis

  • ppo_smoke_run: PPO; rollout_steps_per_update: 2048; running_speed: 32; gpu_collectors_count: 8. ~6.61 h cumulative training (script). TensorBoard: tensorboard/ppo_smoke_run.

  • A01_as20_long_v2: IQN baseline; TensorBoard merged from three folders (see Overview). ~17.74 h cumulative training (script). Save / final best: Experiment: Global Schedule Speed (A01 Long v2 Series).

Reproduce (tables + optional plots):

python scripts/analyze_experiment_by_relative_time.py --logdir tensorboard ppo_smoke_run A01_as20_long_v2 --interval-training-hours 0.5 --step_interval 1000000

python scripts/analyze_experiment_by_relative_time.py --logdir tensorboard ppo_smoke_run A01_as20_long_v2 --interval-training-hours 0.5 --step_interval 1000000 --plot --output-dir docs/source/_static --prefix exp_ppo_smoke_vs_A01_v2

Detailed TensorBoard Metrics Analysis

Methodology: Same as analyze_experiment_by_relative_time.py output: per-race stats and scalars at shared cumulative-training-hour and step checkpoints. The figures below show one metric per graph (both runs as lines, cumulative training hours on the X axis).

A01 eval — best time (Race/eval_race_time_trained_A01)

  • 6.5 h: PPO best 24.930 s; IQN best 24.300 s.

  • 21M steps: PPO best 24.930 s; IQN best 24.450 s.

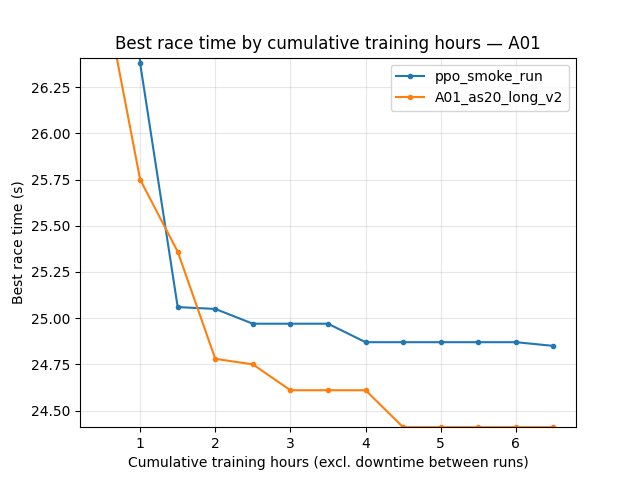

A01 eval best race time by cumulative training hours (ppo_smoke_run vs A01_as20_long_v2)

A01 eval — mean time (all episodes)

  • 6.5 h: PPO mean 296.67 s; IQN mean 94.16 s (IQN finishes a larger fraction of eval races).

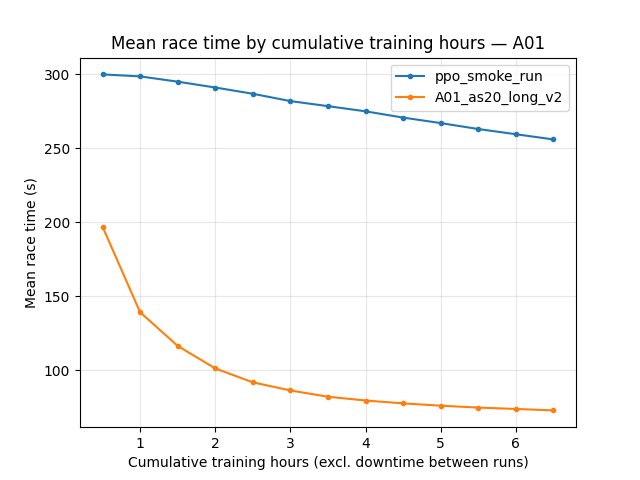

A01 eval mean race time by cumulative training hours (ppo_smoke_run vs A01_as20_long_v2)

A01 eval — finish rate (IQN only in this comparison)

  • 6.5 h: IQN 75% finish rate (PPO column empty in script: no legacy eval_race_finished_* in TB).

A01 eval finish rate by cumulative training hours (A01_as20_long_v2; PPO N/A)

Robust eval (IQN only): Race/eval_race_time_robust_trained_A01

  • PPO does not log this tag; the figure shows the IQN series only.

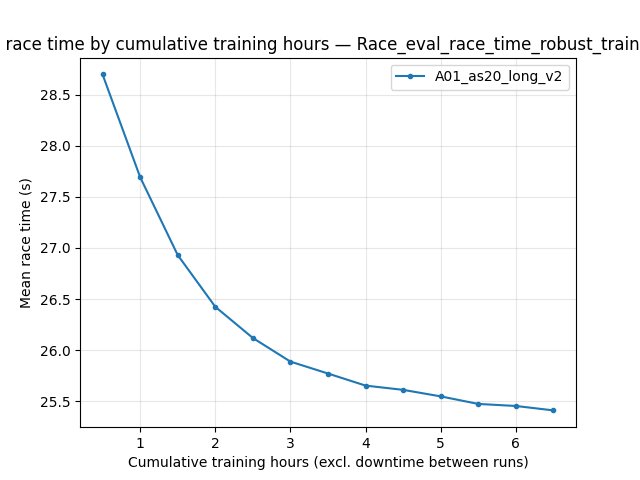

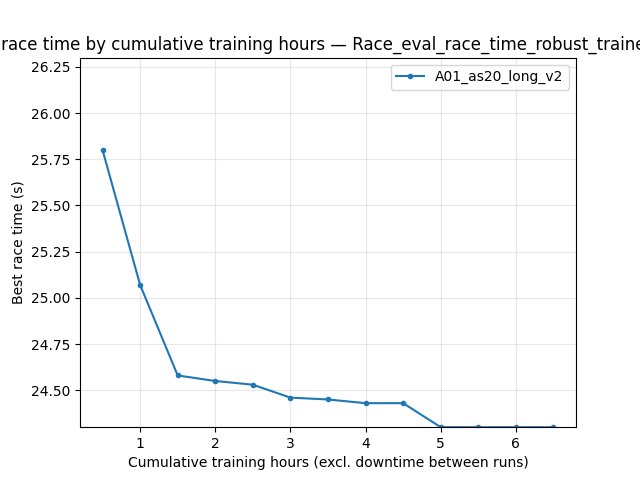

A01 robust eval best time by cumulative training hours (A01_as20_long_v2) A01 robust eval mean time by cumulative training hours (A01_as20_long_v2)

Best-so-far scalar (alltime_min_ms_A01)

  • 6.5 h: 24.830 s (PPO) vs 24.300 s (IQN).

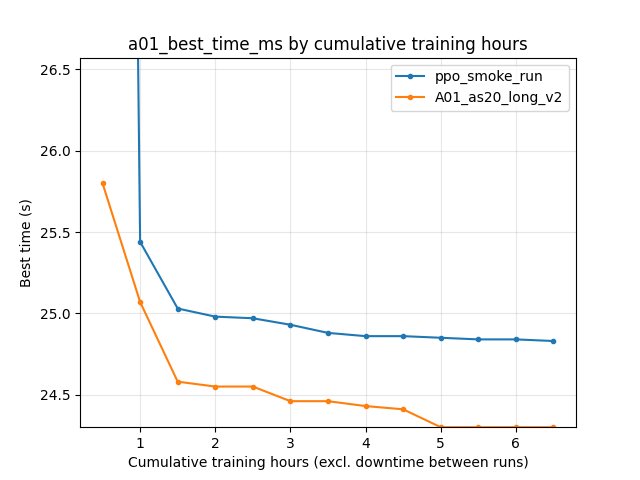

alltime_min_ms A01 by cumulative training hours (ppo_smoke_run vs A01_as20_long_v2)

Training loss (IQN: Training/loss)

  • 6.5 h: IQN ~337.82 (last value at checkpoint). PPO has no IQN loss.

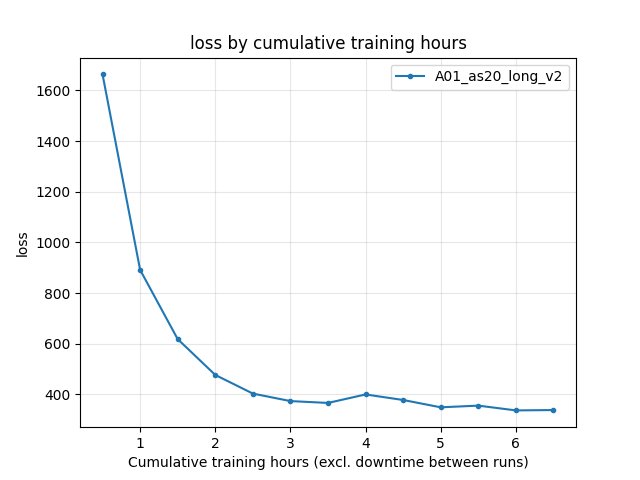

Training loss by cumulative training hours (A01_as20_long_v2; IQN TD loss)

Average Q (IQN: RL/avg_Q_trained_A01)

  • 6.5 h: ~0.0017.

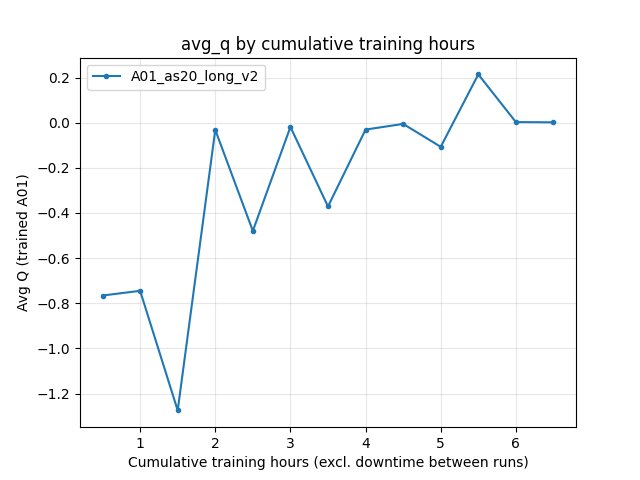

Avg Q trained A01 by cumulative training hours (A01_as20_long_v2)

Learner training percentage (IQN)

  • 6.5 h: ~64.8%.

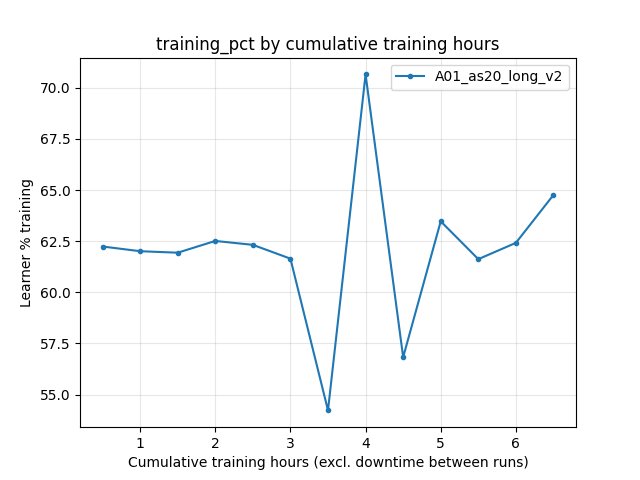

Learner percentage training by cumulative training hours (A01_as20_long_v2)

Configuration Changes

ppo_smoke_run (save/ppo_smoke_run/config_snapshot.yaml): training.algorithm: ppo, run_name: ppo_smoke_run, global_schedule_speed: 1, PPO block as in snapshot; performance.running_speed: 32, gpu_collectors_count: 8.

A01_as20_long_v2 (IQN): Experiment: Global Schedule Speed (A01 Long v2 Series) (e.g. global_schedule_speed: 4, batch_size: 4096).

Hardware

  • PPO run: 8 GPU collectors per config; GPU model and host are local to the machine that produced the logs.

Conclusions

  • With merged TensorBoard (``A01_as20_long_v2`` + ``_2`` + ``_3``), IQN is ahead of this PPO smoke run on alltime_min, eval best, and explo best within the shared 6.5 h and 21M-step windows, and shows high eval finish rate while PPO’s eval mean time remains dominated by non-finishes.

  • Robust eval and Q / IQN loss metrics are IQN-specific; PPO comparison should rely on race times and alltime_min_ms_* (and frame-aligned PPO scalars after the learner fix).

Recommendations

  • Always pass the base run name A01_as20_long_v2 to the script so ``_2`` / ``_3`` chunks merge; do not analyze only the first folder.

  • For PPO vs IQN at equal cumulative training, use --interval-training-hours and the printed hour checkpoints; for equal env steps, use the BY STEP section.

  • Re-run PPO with frame-aligned Training/ppo_loss logging before comparing policy-gradient loss to IQN loss.

Analysis tools

  • python scripts/analyze_experiment_by_relative_time.py ppo_smoke_run A01_as20_long_v2 --logdir tensorboard --interval-training-hours 0.5 --step_interval 1000000

  • Plots: --plot --output-dir docs/source/_static --prefix exp_ppo_smoke_vs_A01_v2 (omit regenerating *_ppo_loss.jpg until PPO TB steps are fixed).
