Visual backbone pretraining

Experiment Overview

This experiment tested the effect of pretraining the visual backbone (CNN img_head) on RL training performance. The pretrained encoder was trained on TrackMania replay frames using an autoencoder objective, then injected into a fresh IQN network before RL training.

Hypothesis: A pretrained visual backbone provides better image features from the start, leading to faster convergence and better final race times.

Key parameters changed: pretrain_encoder_path in training config (baseline: null; experimental: output/ptretrain/vis/v1/encoder.pt). All other RL parameters were identical (batch_size, lr_schedule, maps, etc.).

Results

Important: Run durations differed (A01_as20_long ~495 min, A01_as20_long_vis_pretrained ~275 min), so all findings below are by relative time (minutes from run start) and by steps (training step checkpoints). Comparing by “last value” is invalid.

Key Findings:

  • Faster convergence: A01_as20_long_vis_pretrained reaches good A01 times much earlier. At 35 min: 24.79s vs 25.02s (baseline). At 75 min: 24.55s vs 24.77s. At 150 min: 24.50s vs 24.59s.

  • Better best time at common window: By 270 min (end of pretrained run): vis_pretrained 24.47s, baseline 24.53s (~60 ms faster).

  • Higher finish rate: At 270 min, pretrained has 74% eval finish rate vs 63% baseline; explo 78% vs 76%.

  • Lower mean/std of race times: Pretrained shows lower std and better mean at same checkpoints (more stable policy).

  • By steps: At 11.15M steps (common max), pretrained best 24.47s vs baseline 24.53s. Pretrained reached 24.50s by ~6M steps; baseline needed more steps.

  • Training loss: Similar by end of common window (~62–63); pretrained had slightly lower loss in early phase (e.g. at 90 min: 61.35 vs 64.29).

  • GPU utilization: Both ~70–72% over the window; no significant difference.

Run Analysis

  • A01_as20_long (baseline): Same config as A01_as20_long_vis_pretrained except pretrain_encoder_path: null. IQN starts from random weights. ~495 min (relative time), 3 TensorBoard log dirs merged.

  • A01_as20_long_vis_pretrained: pretrain_encoder_path: "output/ptretrain/vis/v1/encoder.pt". Encoder injected into IQN before training start. ~275 min (relative time), 2 TensorBoard log dirs merged.

Pretrain encoder source: output/ptretrain/vis/v1, trained with config_files/pretrain/vis/pretrain_config.yaml:

  • Task: autoencoder (ae)

  • Framework: PyTorch Lightning

  • Image size: 64×64 (matches IQN w_downsized / h_downsized)

  • Epochs: 50

  • Batch size: 4096

  • Final train_loss: 0.0112

  • Dataset: 441,247 samples from maps/img

Detailed TensorBoard Metrics Analysis

Methodology — Relative time and by steps: Metrics are compared (1) at checkpoints 5, 10, 15, 20, … min (only up to the shortest run, 270 min) and (2) at step checkpoints 50k, 100k, … (only up to the smallest max step). The figures below show one metric per graph (runs as lines, by relative time).

A01 Map Performance (common window up to 270 min)

  • Baseline (A01_as20_long): at 35 min — 25.02s; at 85 min — 24.71s; at 150 min — 24.59s; at 270 min — 24.53s.

  • Pretrained (A01_as20_long_vis_pretrained): at 35 min — 24.79s; at 85 min — 24.55s; at 150 min — 24.50s; at 270 min — 24.47s.

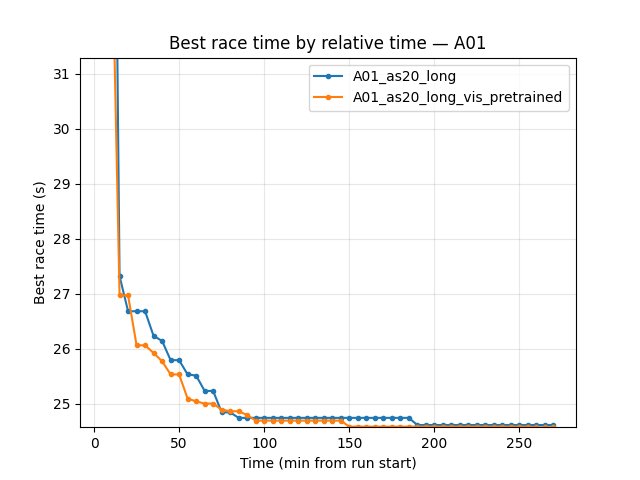

A01 best time by relative time (A01_as20_long vs A01_as20_long_vis_pretrained)

Training Loss

  • Baseline: at 90 min — 64.29; at 270 min — 62.27.

  • Pretrained: at 90 min — 61.35; at 270 min — 63.28.

Training loss by relative time (A01_as20_long vs A01_as20_long_vis_pretrained)

Average Q-values

  • Both runs show similar Q dynamics; no systematic advantage for either.

  • Baseline: at 270 min — -0.47.

  • Pretrained: at 270 min — -0.92.

Avg Q by relative time (A01_as20_long vs A01_as20_long_vis_pretrained)

GPU Utilization

  • Both ~70–72% over the common window; no significant difference.

Configuration Changes

Training (only change between runs):

pretrain_encoder_path: null   # baseline (A01_as20_long)
pretrain_encoder_path: "output/ptretrain/vis/v1/encoder.pt"  # pretrained (A01_as20_long_vis_pretrained)

Pretrain (config_files/pretrain/vis/pretrain_config.yaml):

task: ae
framework: lightning
image_size: 64
n_stack: 1
epochs: 50
batch_size: 4096
lr: 0.001
data_dir: maps/img
output_dir: output/ptretrain/vis
run_name: v1

Hardware

  • GPU: Same as other A01 runs (see training_speed / extended_training).

  • Parallel instances: Same gpu_collectors_count (from config_default).

  • System: Windows (from pretrain_meta.json path).

Conclusions

Visual pretraining helps. By relative time and by steps, A01_as20_long_vis_pretrained:

  • Converges faster to good A01 times (e.g. 24.79s by 35 min vs 25.02s for baseline).

  • Achieves a better best time at the common window (24.47s vs 24.53s).

  • Shows higher finish rate and lower std of race times (more stable).

The pretrain phase (autoencoder on 441k replay frames, 50 epochs) adds upfront cost but reduces RL wall-clock time needed to reach the same performance. The encoder was trained with output/ptretrain/vis/v1 config; see Replay pretrain roadmap for further experiments (SimCLR vs AE, more epochs, etc.).

Recommendations

  • Use pretrained encoder for new A01 (or similar) runs when replay frames are available. Inject with pretrain_encoder_path: "output/ptretrain/vis/v1/encoder.pt" (or your pretrain output path).

  • Reproduce pretrain: python scripts/pretrain_visual_backbone.py with config_files/pretrain/vis/pretrain_config.yaml.

  • Inject into IQN: The training script auto-injects when weights1.torch does not exist. Manual injection: scripts/init_iqn_from_encoder.py.

  • Next experiments: Compare AE vs SimCLR pretrain; vary pretrain epochs; vary amount of pretrain data.

Analysis Tools:

  • By relative time and by steps: python scripts/analyze_experiment_by_relative_time.py A01_as20_long A01_as20_long_vis_pretrained --interval 5 --step_interval 50000

  • Plots: python scripts/generate_experiment_plots.py --experiments pretrain_visual_backbone
